使用ida脚本去除ollvm混淆

纸上得来终觉浅。尝试一下通过ida脚本解ollvm混淆。样本来自看雪

前言

首先放上经典图片

1. 函数的开始地址为序言（Prologue）的地址
2. 序言的后继为主分发器（Main dispatcher）
3. 后继为主分发器的块为预处理器（Predispatcher）
4. 后继为预处理器的块为真实块（Relevant blocks）
5. 无后继的块为retn块
6. 剩下的为无用块与子分发器（Sub dispatchers）

举个例子，ollvm混淆前，程序的执行流程如下：

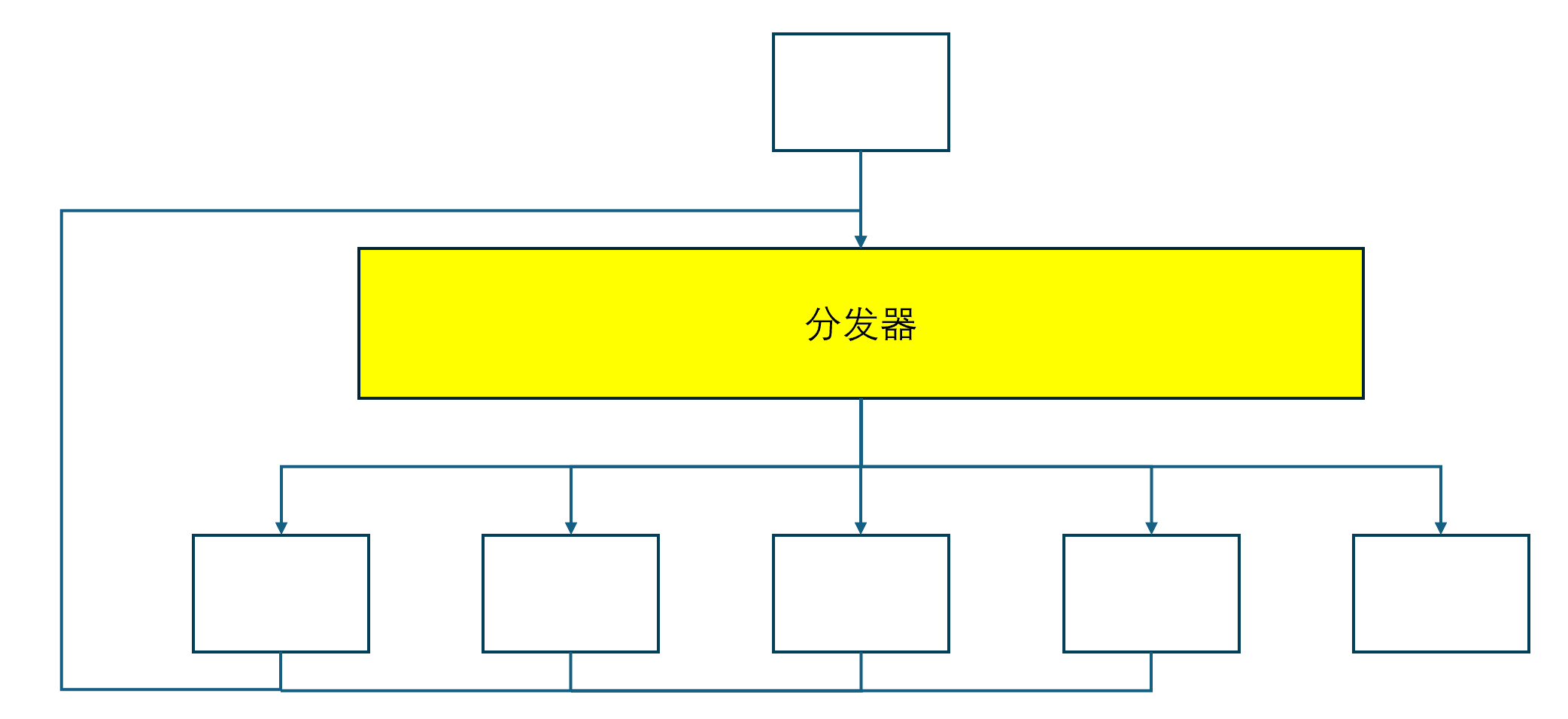

混淆后，变成：

我们要做的就是将其还原成：

分析

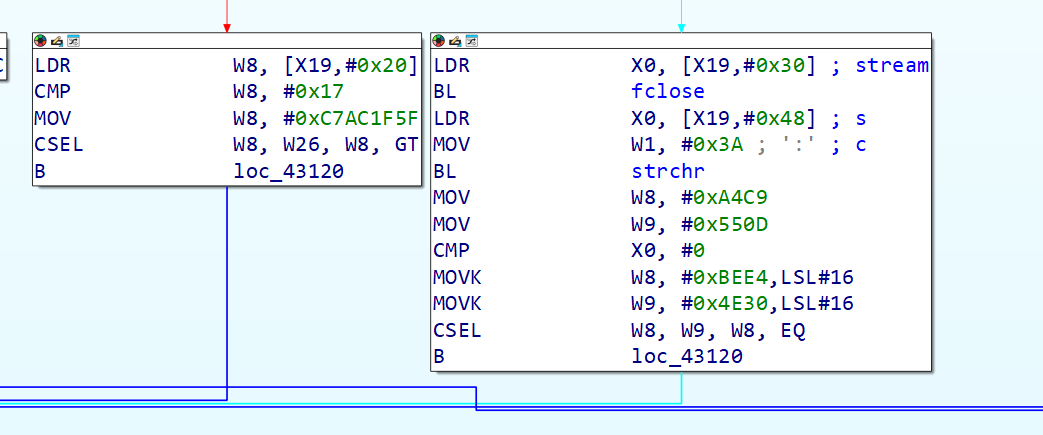

接下来看样本。序言块如图所示。除了初始化W8外还初始化了W20-W28用于分发。

解ollvm混淆首先要找到主分发器，这里我们可以认为入度大于某个阈值的块即为主分发器。

针对这个样本，真实块的后继节点就是主分发器，通过一个无条件跳转跳转到主分发器。所以只需要通过寻找主分发器的前驱节点即可找到所有真实块。

真实块会在最后更新W8，可以以此作为根据来还原控制流。其更新的W8的Index所对应的真实块即为其真实后继。

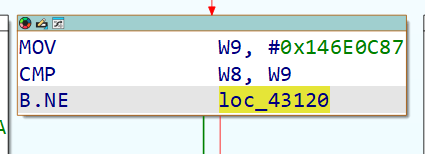

对于真实块的index，可以通过真实块的前驱分发块来获取到真实块的index。这个样本中主要有两种模式：

一种是通过临时对W9赋值来和W8做比较

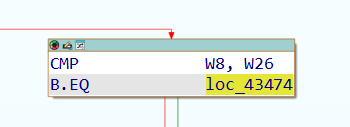

另一种是将W8与序言块中初始化的W20-W28作比较。

对于第一种可以直接跟踪W9的值来获取index，对于第二种，则通过预先保存序言块中初始化的值来获取index。

针对这个样本，可以粗暴的认为包含ret语句的块即为ret块。最后，根据index重构跳转即可。我这里的做法是直接将真实块的末尾跳转语句跳转到后继真实块，对于包含分支的真实块则将csel改成条件跳转。

脚本

最终实现脚本如下：

import idaapi
import idautils
import idc
import keystone
import logging

# 正确配置logging输出到命令行
logging.basicConfig(level=logging.DEBUG, format='%(message)s')

#初始化Ks
ks = keystone.Ks(keystone.KS_ARCH_ARM64, keystone.KS_MODE_LITTLE_ENDIAN)

# 寄存器与地址映射表 (基于提供的汇编代码)
REGISTER_ADDRESS_MAP = {
    'W20': 0x3455F110,  # MOV W20, #0xF110 + MOVK W20, #0x3455,LSL#16
    'W21': 0xA9D4543A,  # MOV W21, #0x543A + MOVK W21, #0xA9D4,LSL#16
    'W22': 0xBD9FBB9,   # MOV W22, #0xFBB9 + MOVK W22, #0xBD9,LSL#16
    'W23': 0xC7AC1F5E,  # MOV W23, #0x1F5E + MOVK W23, #0xC7AC,LSL#16
    'W24': 0xE4DBC33F,  # MOV W24, #0xC33F + MOVK W24, #0xE4DB,LSL#16
    'W25': 0x4E30550C,  # MOV W25, #0x550C + MOVK W25, #0x4E30,LSL#16
    'W26': 0xA9D4543B,  # MOV W26, #0x543B + MOVK W26, #0xA9D4,LSL#16
    'W27': 0x665797A4,  # MOV W27, #0x97A4 + MOVK W27, #0x6657,LSL#16
    'W28': 0xE4DBC33E,  # MOV W28, #0xC33E + MOVK W28, #0xE4DB,LSL#16
    'W8':  0x665797A5
}


def findDispatchers(func_start,num = 10):
    """
    找到主分发块。当入度大于num时，认为是主分发块。
    """
    func = idaapi.get_func(func_start)
    blocks = idaapi.FlowChart(func)

    pachers = []
    for block in blocks:
        preds = block.preds()
        preds_list = list(preds)
        if len(preds_list) > num:
            pachers.append(block)
    return pachers

def findRealBlocks(dispatchers):

    """
    找到真实块。这里认为后继节点是 主分发器 的块为真实块
    """
    real_blocks = []
    for dispatcher in dispatchers:
        # 获取dispatcher的所有前驱块
        preds = dispatcher.preds()
        for pred in preds:
            # 获取前驱块的最后一条指令地址
            last_insn = idc.prev_head(pred.end_ea)

            # 检查是否为B指令（无条件跳转）
            mnem = idc.print_insn_mnem(last_insn)
            if mnem == "B":
                # 获取跳转目标地址
                target = idc.get_operand_value(last_insn, 0)

                # 检查跳转目标是否指向当前dispatcher
                if target == dispatcher.start_ea:
                    # 确保这个块不是dispatcher本身
                    if pred not in dispatchers:
                        real_blocks.append(pred)

    # 去重
    real_blocks = list(set(real_blocks))
    return real_blocks

def findRetBlock(func_start):
    """
    找到返回块。返回块是以RET指令结束的基本块。
    """
    func = idaapi.get_func(func_start)
    blocks = idaapi.FlowChart(func)

    ret_blocks = []
    for block in blocks:
        # 获取块的最后一条指令
        last_insn = idc.prev_head(block.end_ea)

        # 检查是否为RET指令
        mnem = idc.print_insn_mnem(last_insn)
        if mnem == "RET":
            ret_blocks.append(block)

    return ret_blocks

def getRealOrderOfBlocks(realBlocks):
    """
    找到每个块的index。具体做法是根据前驱分发块的MOV指令获取index。
    例如：
    MOV             W9, #0xF5C370CA
    CMP             W8, W9
    B.NE            loc_43120

    通过跟踪W9的值来获取真实块的index

    result = [
    (BB1, index1,[succ]),
    (BB2, index2,[succ1, succ2, "CC"]),
    ...
    ]

    """

    def getIndex(block):
        """
        输入前驱块，即子分发器
        获取Index
        主要有这两种模式：
        0x43138: MOV             W9, #0xC7AC1F5F
        0x43140: CMP             W8, W9
        0x43144: B.EQ            loc_433F8


        0x43288: CMP             W8, W24
        0x4328c: B.EQ            loc_4340C
        """
        index = 0
        eaBCC = idc.prev_head(block.end_ea)
        eaCMP = idc.prev_head(eaBCC)
        CMPreg = idc.print_operand(eaCMP, 1)  # 获取寄存器名称字符串
        if(CMPreg == "W9"):
            # 0x43138: MOV             W9, #0xC7AC1F5F
            eaMOV = idc.prev_head(eaCMP)
            index = idc.get_operand_value(eaMOV, 1)
        else:
            # 0x43288: CMP             W8, W24
            index = REGISTER_ADDRESS_MAP.get(CMPreg, None)
        return index



    def getSuccIndex(block):
        """
        输入当前块
        获取后继块的index
        主要有这三种模式：

        0x43278: LDR             X8, [X19,#0x40]
        0x4327c: MOV             W8, #0x5338AB80
        0x43284: B               loc_43120

        0x434cc: LDRB            W8, [X19,#0x1F]
        0x434d0: MOV             W9, #0x1B166FED
        0x434d8: CMP             W8, #0
        0x434dc: MOV             W8, #0x146E0C87
        0x434e4: CSEL            W8, W8, W9, NE
        0x434e8: B               loc_43120

        0x4340c: BL              sub_AC28
        0x43410: MOV             W8, #0xA6FB
        0x43414: STR             W0, [X19,#0x24]
        0x43418: MOVK            W8, #0x7986,LSL#16
        0x4341c: B               loc_43120
        核心区别在于倒数第二条指令
        """

        result = []
        eaAssign = idc.prev_head(idc.prev_head(block.end_ea))
        asmAssign = idc.print_insn_mnem(eaAssign)
        if asmAssign == "MOV":
            succ = idc.get_operand_value(eaAssign, 1)
            result.append(succ)

        elif asmAssign == "MOVK":
            succHigh = idc.get_operand_value(eaAssign, 1)
            eaCurrent = idc.prev_head(eaAssign)

            # 向前查找 MOV W8, #0xA6FB
            while eaCurrent > block.start_ea:
                asmCurrent = idc.print_insn_mnem(eaCurrent)
                if asmCurrent == "MOV":
                    reg = idc.print_operand(eaCurrent, 0)
                    if reg == "W8":
                        succLow = idc.get_operand_value(eaCurrent, 1)
                        succ = (succHigh << 16) | succLow
                        result.append(succ)
                        break
                eaCurrent = idc.prev_head(eaCurrent)

        elif asmAssign == "CSEL":
            flag = idc.print_operand(eaAssign, 3)
            trueReg = idc.print_operand(eaAssign, 1)
            falseReg = idc.print_operand(eaAssign, 2)
            trueRegIndex = 0
            falseRegIndex = 0
            if(trueReg in REGISTER_ADDRESS_MAP):
                trueRegIndex = REGISTER_ADDRESS_MAP[trueReg]
            if(falseReg in REGISTER_ADDRESS_MAP):
                falseRegIndex = REGISTER_ADDRESS_MAP[falseReg]

            eaCurrent = idc.prev_head(eaAssign)
            while eaCurrent > block.start_ea:
                asmCurrent = idc.print_insn_mnem(eaCurrent)

                if asmCurrent == "MOV":
                    reg = idc.print_operand(eaCurrent, 0)
                    if reg == trueReg:
                        trueRegIndex = idc.get_operand_value(eaCurrent, 1)
                    elif reg == falseReg:
                        falseRegIndex = idc.get_operand_value(eaCurrent, 1)
                elif asmCurrent == "MOVK":
                    trueRegIndex = 0x4E30550D
                    falseRegIndex = 0xBEE4A4C9
                    break

                if(trueRegIndex != 0 and falseRegIndex != 0):
                    break
                eaCurrent = idc.prev_head(eaCurrent)

            result.append(trueRegIndex)
            result.append(falseRegIndex)
            result.append(flag)
        return result

    result = []
    for realBlock in realBlocks:
        realBlockPred = realBlock.preds()
        predList = list(realBlockPred)
        predCount = len(predList)
        succCount = len(list(realBlock.succs()))
        if(succCount == 0):
            #RET块
            result.append((realBlock, 0x146E0C87, []))

        elif(predCount == 0 and succCount != 0):
            #序言块
            result.append((realBlock,None,[REGISTER_ADDRESS_MAP['W8']]))

        elif(predCount == 1 and succCount != 0):
            #一个前驱块
            pred = predList[0]  # 使用已经转换的列表

            Index = getIndex(pred)
            SuccIndex = getSuccIndex(realBlock)
            result.append((realBlock, Index, SuccIndex))

        else:
            print("多前驱块真实块{}".format(hex(realBlock.start_ea)))

    return result

def showAllBlocks(blocks):
    """
    调试用
    显示所有块的起始地址和结束地址以及所有指令
    """
    for i, block in enumerate(blocks):
        print(f"\n=== Block {i+1}: {hex(block.start_ea)} - {hex(block.end_ea)} ===")

        # 遍历块中的每条指令
        ea = block.start_ea
        while ea < block.end_ea:
            # 获取指令的反汇编代码
            disasm = idc.GetDisasm(ea)
            print(f"{hex(ea)}: {disasm}")

            # 移动到下一条指令
            ea = idc.next_head(ea)
        print(f"=== End of Block {i+1} ===")

def printPatchInfo(patchInfo):
    """
    打印补丁信息
    """
    print("\n=== 补丁信息 ===")
    for block, index, succ in patchInfo:
        if index is not None:
            print(f"Block {hex(block.start_ea)}: Index = {hex(index)}, Successors = {succ}")
        else:
            print(f"Block {hex(block.start_ea)}: No Index, Successors = {succ}")
    print("=== 补丁信息结束 ===")

def patch(patchInfo):
    """
    重构程序流
    """

    def findBlockByIndex(patchInfo, targetIndex):
        """
        根据索引查找对应的块地址
        """
        for block, index, succ in patchInfo:
            if index == targetIndex:
                return block.start_ea
        print(f"[-] No block found for index {hex(targetIndex) if isinstance(targetIndex, int) else targetIndex}")
        return None


    for block, index, succ in patchInfo:
        print("succ is:"+ str(succ)+"   len: "+str(len(succ)))
        if succ is not None:
            if len(succ) == 1:
                # 单个后继块
                succIndex = succ[0]
                succAddress = findBlockByIndex(patchInfo, succIndex)
                if succAddress:
                    # patch最后一条指令 - 使用b指令而不是br
                    try:
                        patch_code = f"b #{hex(succAddress)}"
                        print(f"[+] Patching {hex(idc.prev_head(block.end_ea))} with: {patch_code}")
                        encoding, count = ks.asm(patch_code, idc.prev_head(block.end_ea))
                        # 使用正确的IDA API
                        for i, byte_val in enumerate(encoding):
                            idc.patch_byte(idc.prev_head(block.end_ea) + i, byte_val)
                    except Exception as e:
                        print(f"[-] Error patching block {hex(block.start_ea)}: {e}")

            elif len(succ) == 3:
                # 两个后继块 - 条件跳转情况
                succTrue, succFalse, flag = succ
                succTrueAddress = findBlockByIndex(patchInfo, succTrue)
                succFalseAddress = findBlockByIndex(patchInfo, succFalse)

                if succTrueAddress and succFalseAddress:
                    Baddr = idc.prev_head(block.end_ea)
                    BCCaddr = idc.prev_head(Baddr)
                    try:
                        # 条件跳转
                        patch_code1 = f"b.{flag.lower()} #{hex(succTrueAddress)}"
                        print(f"[+] Patching {hex(BCCaddr)} with: {patch_code1}")
                        encoding1, count1 = ks.asm(patch_code1, BCCaddr)
                        for i, byte_val in enumerate(encoding1):
                            idc.patch_byte(BCCaddr + i, byte_val)

                        # 无条件跳转
                        patch_code2 = f"b #{hex(succFalseAddress)}"
                        print(f"[+] Patching {hex(Baddr)} with: {patch_code2}")
                        encoding2, count2 = ks.asm(patch_code2, Baddr)
                        for i, byte_val in enumerate(encoding2):
                            idc.patch_byte(Baddr + i, byte_val)
                    except Exception as e:
                        print(f"[-] Error patching block {hex(block.start_ea)}: {e}")
                else:
                    print(f"[-] Cannot find target addresses for conditional jump in block {hex(block.start_ea)}")
                    print(f"    succTrue: {hex(succTrue) if isinstance(succTrue, int) else succTrue}")
                    print(f"    succFalse: {hex(succFalse) if isinstance(succFalse, int) else succFalse}")

def deOllvm(addr):
    realBlocks = []
    dispatchers = findDispatchers(addr)
    retBlocks = findRetBlock(addr)
    realBlocks = findRealBlocks(dispatchers)
    for retBlock in retBlocks:
        if retBlock not in realBlocks:
            realBlocks.append(retBlock)
    patchInfo = getRealOrderOfBlocks(realBlocks)
    printPatchInfo(patchInfo)
    patch(patchInfo)


deOllvm(0x43058)

总结

实际写了一遍也算是加深印象了。但这脚本写的实在是过于case by case，直接基于汇编的脚本容易陷入针对特定指令模式的死板匹配，有时间应该分析一下d810是如何在微码层面实现的。
